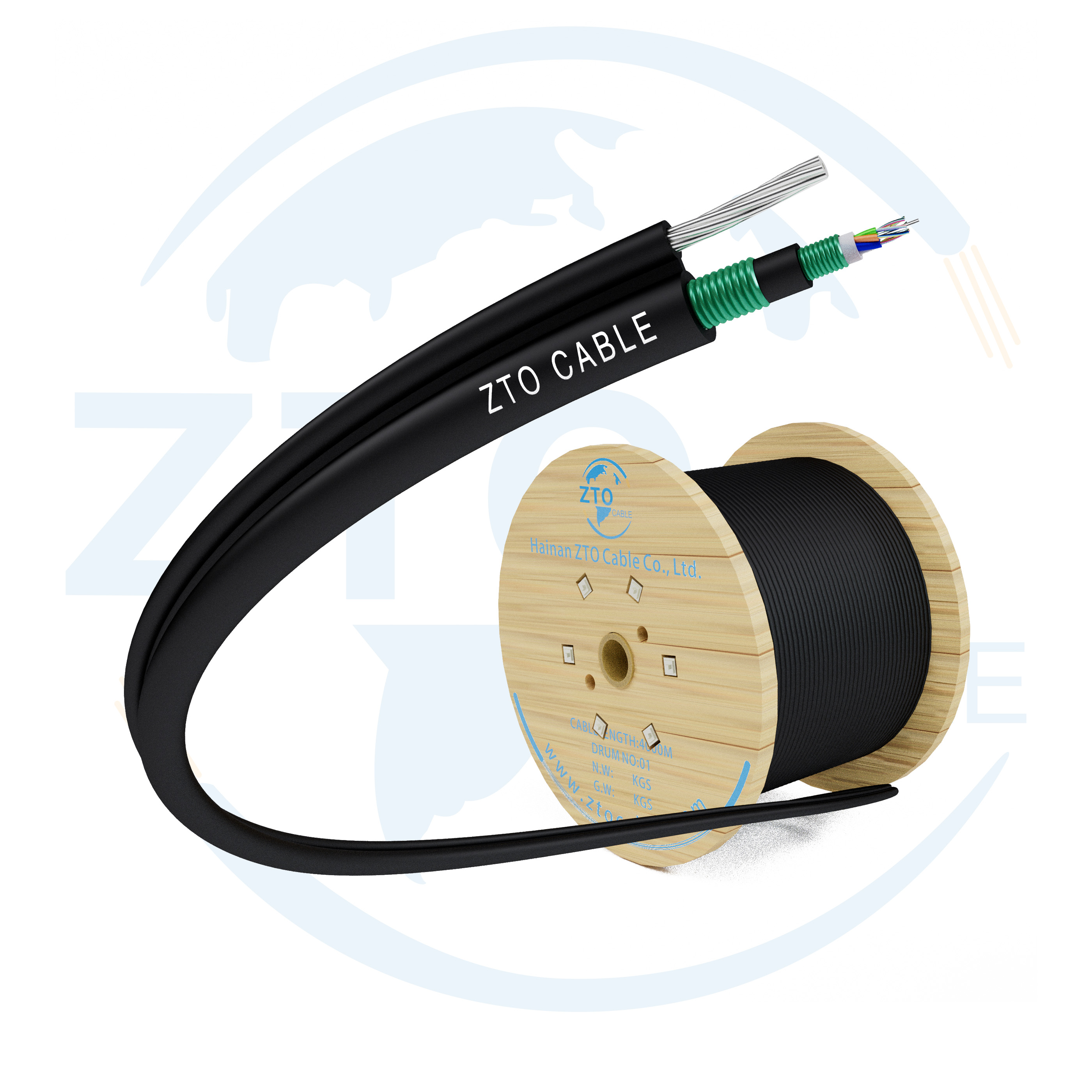

Aerial Figure 8 DJDA Fiber Optic Cable GYTC8S53
Stranded Figure 8 Aerial Cable, singlemode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together
- Satisfaction guarantee
- Fast delivery
- Quality assurance
Description
Stranded Figure 8 Aerial Cable, singlemode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After aramid yarnĀ is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

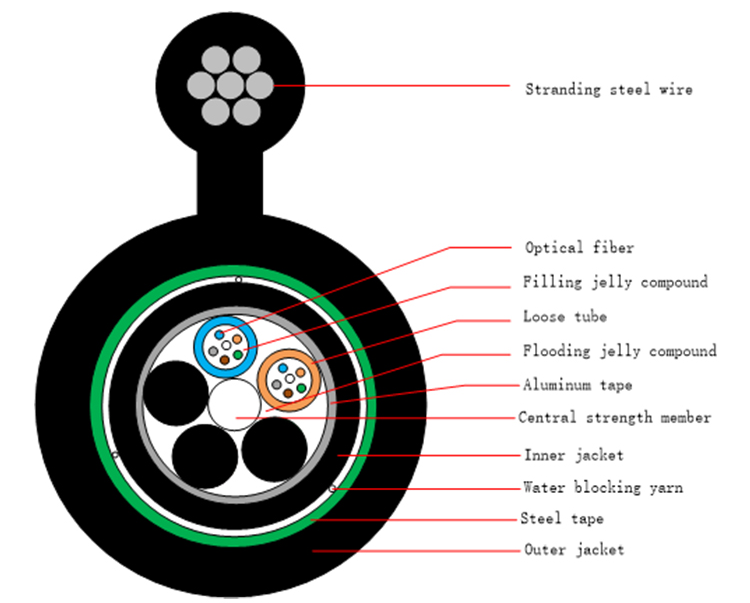

Structure
Characteristics
Loose tube gel-filled construction for superior fiber protection.
Double jacket and double armor to protect cable from rodent attack and mechanical damage.
UV and moisture-resistant design.
Self-supporting Figure 8 design.
Application
Fig 8 self-supporting Aerial cable is suitable for long distance transmission and local network commucationtion.
