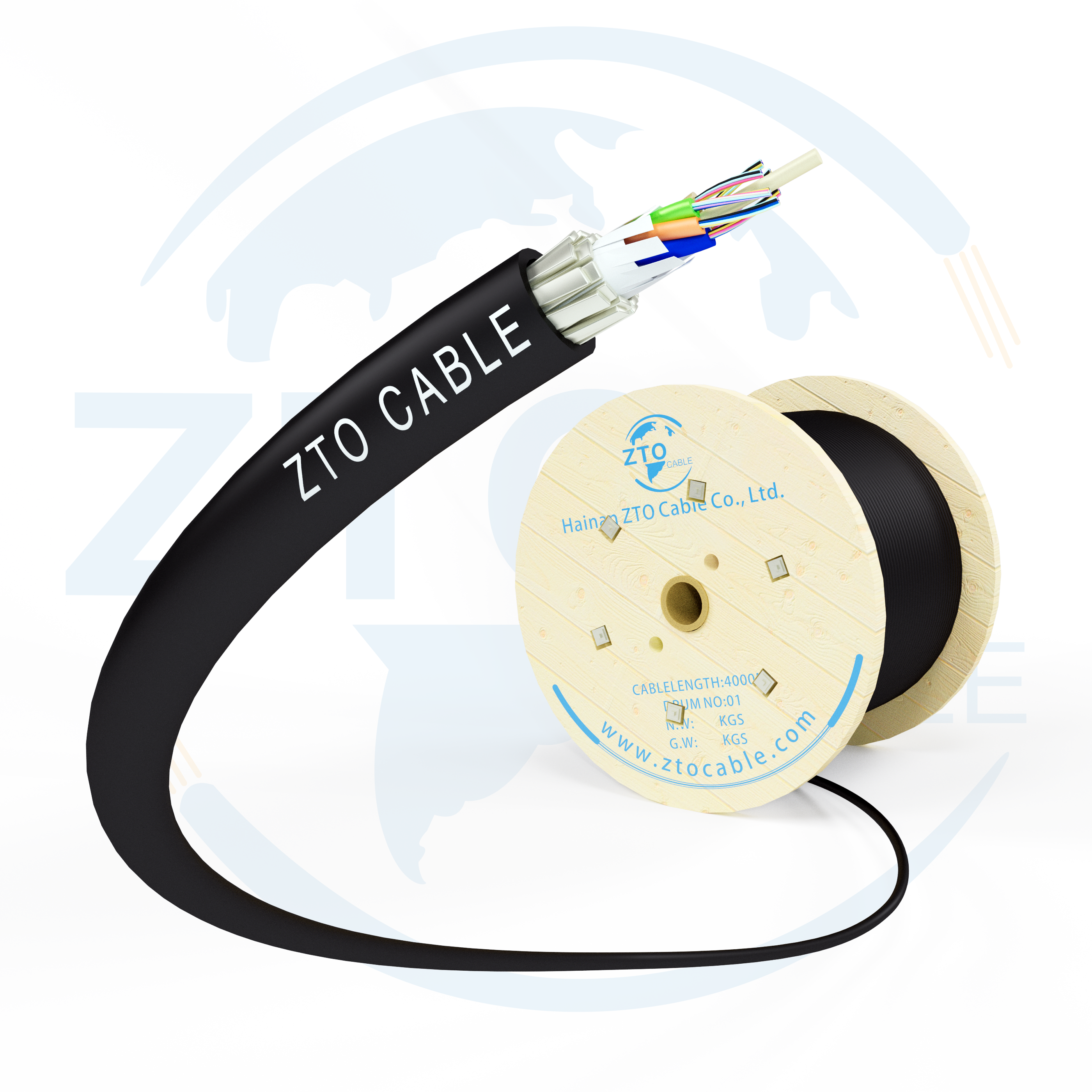

ANTI-RODENT All DIELECTRIC SELF-SUPPORTING ADSS AERIAL CABLE

Description

SPECIFICATION

1.Introduction of fiber optical cable

ADSS cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance. FRP as central strength member to provide the tensile strength .A full circle of flat FRP rod is laid between out and inner jackets ,which has good ability to anti-rodent in overhead .All dielectric and flexible structure , easy to install .

2. Cable Cross -Section

3.Fiber Optical Cable Specification

Category	ITU T-G652DDescription	Specifications
		After cabling
Optical Specifications	Attenuation @1310 nm (No-wired/Wired)	≤0.35 dB/km
	Attenuation @1383 nm (No-wired/Wired)	≤0.35 dB/km
	Attenuation @1550 nm (No-wired/Wired)	≤0.21  dB/km
	Attenuation @1625nm	≤0.23 dB/km
	Attenuation @1285-1625nm	≤0.40 dB/km
	Zero Dispersion Wavelength	1300~1324 nm
	Zero Dispersion Slope	≤ 0.092 ps/nm2∙km
	PMD Link value of fiber individual	≤0.18 ps/√km
	PMDq (Q=0.01% N=20)	≤0.08 ps/√km
	Cable Cutoff Wavelength (λcc) 1100-1320 nm	≤1260 nm
	Dispersion coefficient at 1285-1330 nm	≤3.5 ps/nm.km
	Dispersion coefficient at 1550 nm	≤18.0 ps/nm.km
	Dispersion coefficient at 1625 nm	≤22.0 ps/nm.km
	Macro bending Loss(100 turns; Ф50 mm) @1550 nm (100 turns; Ф50 mm) @1625 nm	≤ 0.05 dB≤ 0.10 dB
Dimensional Specifications	Mode Field Diameter @1310 nm	9.2±0.4μm
	Mode Field Diameter @1550 nm	10.4±0.5μm
	Cladding Diameter	125 ±1.0μm
	Core/clad concentricity error	≤0.6μm
	Coating/cladding concentricity error	≤12μm
	Cladding Non-Circularity	≤10%
	Coating diameter (colored)	250 ±15 μm
Mechanical Specifications	Proof stress	≥0.69Gpa
	Min. bending radius	Static: 10 x cable diameter Dynamic: 20 x cable diameter
	Temperature range	Operation: -40℃ ~ +80℃ Installation: -10℃ ~ +60℃Storage/transportation: -40℃ ~+80℃

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad   diameter(mm)	Thickness of outer  jacket(mm)	Cable diameter(mm)	Reel length	Cable weight/kg
96	1+8	12	1.95±0.1	2.4-3.2	1.7±0.1	12.5±0.2	2km	170
144	1+12	12	1.95±0.1	3.0-5.7	1.7±0.1	16.0±0.2	2km	250

(Item)		(Parameters)
Loose tube	Material	PBT
	Color	All colors display
Filler	Material	PE
	Color	Black
CSM	Material	FRP rods
Anti-rodent armored	Material	0.7*3mm Flat FRP
Rip cord	Numbers	2
Water proof system	Materials	Water blocking tape + water blocking yarn
Out jacket	Material	HDPE -UV protection
	Color	Black
Min. bending radius	Static	10 times cable diameter
	Dynamic	20 times cable diameter
Repeating bending	Load：150N;number of cycles:30  No obvious addition attenuation, no fiber break and no cable damage.
Crush	Short term	2000N/100mm
Torsion	Load：150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
Impact	Impact energy：450g×1m; radius of hammer head:12.5mm; number of impact: 5  No obvious addition attenuation, no fiber break and no cable damage.
Span(m)	100
