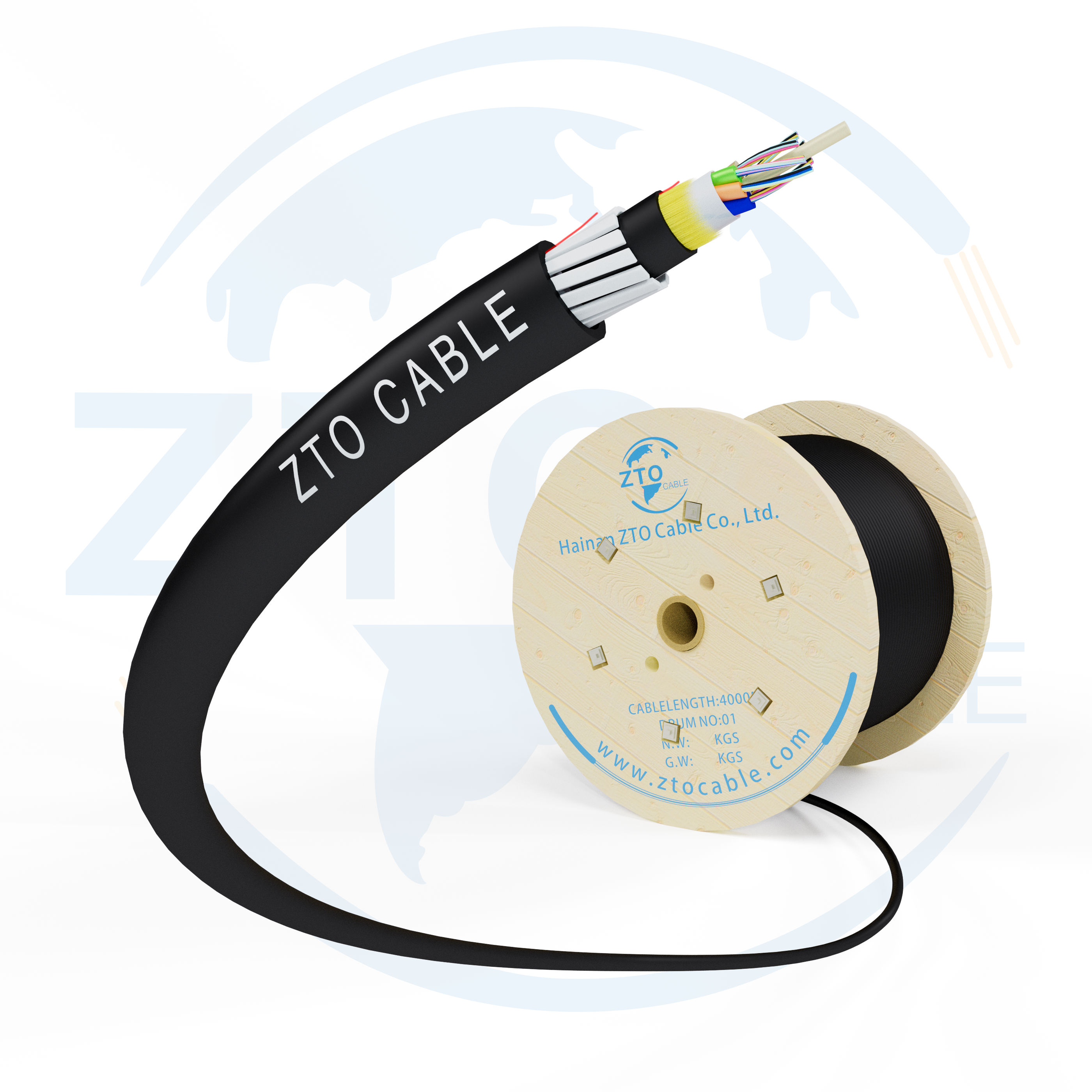

ANTI-RODENT FRP ARMOREDDOUBLE JACKETS AERIALADSS CABLE

Description

1.Introduction of fiber optical cable

ADSS cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance. FRP as central strength member to provide the tensile strength , additionally aramid yarn also reinforce the tensile performance . A full circle of flat FRP rods is laid between out and inner jackets ,which has good ability to anti-rodent in overhead .All dielectric and flexible structure , easy to install .

Application: Overhear aerial Anti-rodent , Anti squirrel

2.Cable Cross -Section

(Item)		(Parameters)
Loose tube	Material	PBT
	Color	All colors display
Filler	Material	PE
	Color	Black
CSM	Material	FRP rods
Non-metal reinforced pieces	Material	Aramid yarn
Anti-rodent armored	Material	9*3mm*1mm Flat FRP
Rip cord	Numbers	4
Water proof system	Materials	Water blocking tape + water blocking yarn
Inner jacket	Inner Diameter	8.8±0.2
	Material	MDPE
	Color	Black
Outer jacket	Out Diameter	14.8±0.2
	Material	HDPE -UV protection
	Color	Black
Min. bending radius	Static	10 times cable diameter
	Dynamic	20 times cable diameter
Repeating bending	Load：150N;number of cycles:30  No obvious addition attenuation, no fiber break and no cable damage.
Crush	Short term	2000N/100mm
Torsion	Load：150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
Impact	Impact energy：450g×1m; radius of hammer head:12.5mm; number of impact: 5  No obvious addition attenuation, no fiber break and no cable damage.
Span(m)	300
