Single Jacket ADSS Span 50M to 200M

Description

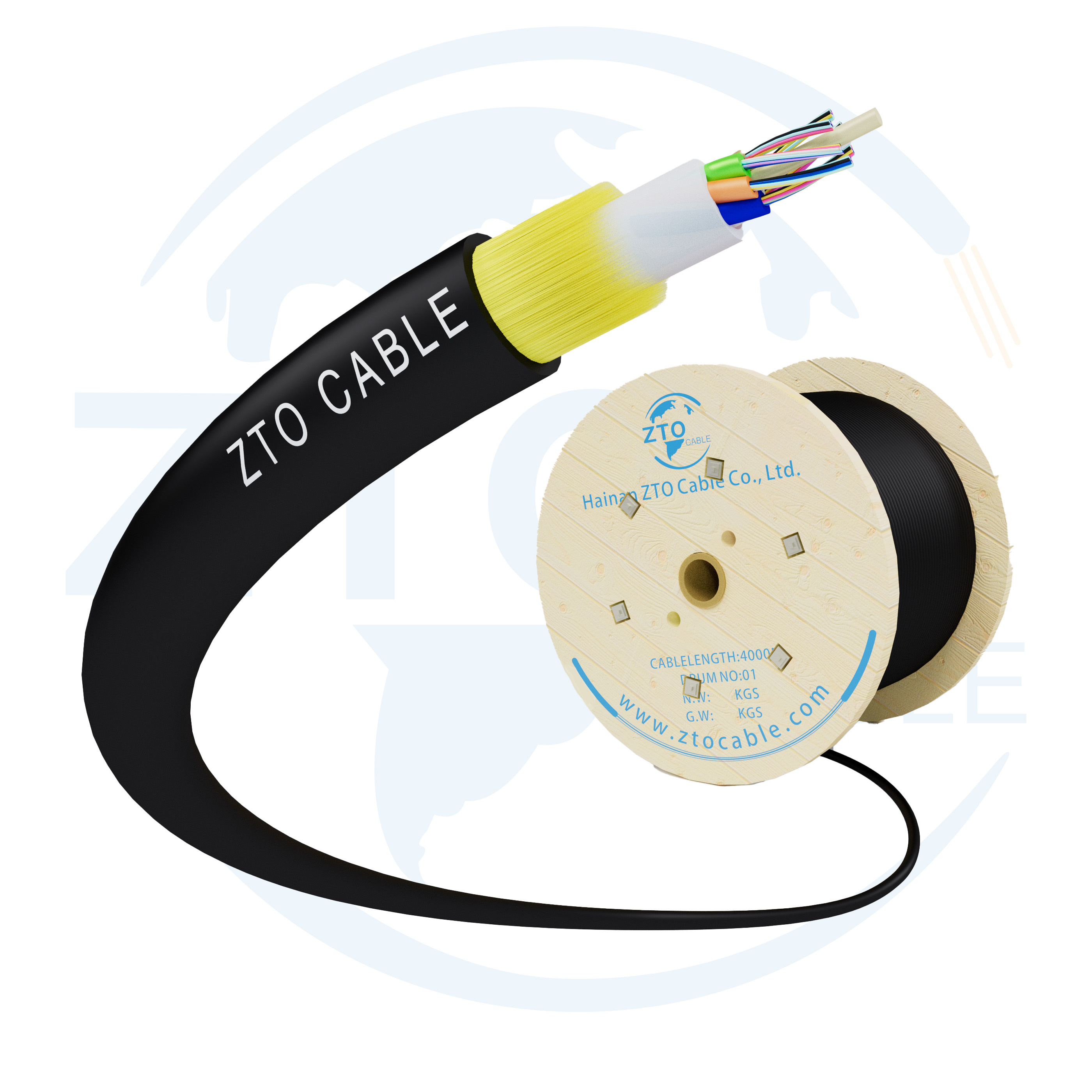

The Single JAacket ADSS Span 50M to 200M is a type of All-Dielectric Self-Supporting (ADSS) fiber optic cable designed for aerial installations, specifically for relatively shorter spans ranging from 50 meters to 200 meters. It is commonly used in various outdoor communication networks to provide high-speed data transmission and connectivity. ADSS cable adopts the twisted structure of loose sleeve layer, 250 μm optical fiber is inserted into the loose tube made of high modulus materials, and the loose tube is filled with waterproof compounds.  The loose tube ( and filling rope ) is twisted around the non-metallic center reinforcing core ( FRP ) to synthesize a compact cable core. The gap of the cable core is filled with a water-blocking yarn and a water-blocking belt longitudinally wrapped by the cable core, and then the aramid fiber that plays a reinforcing role is twisted. Finally, the polyethylene ( PE ) outer sheath or the electric mark ( AT ) outer sheath is extruded.

Structure

Characteristics

Standard

IEEE P 1222 technical standard, and meets the IEC 60794-1 standard and DLT 788-2016 standard.

Application

The design of ADSS cable takes full account of the actual situation of power lines and is suitable for different grades of high voltage transmission lines.  Polyethylene ( PE ) sheath can be used for 10 kV and 35 kV power lines.  For 110 kV and 220 kV power lines, the optical cable hanging point must be determined by calculating the electric field strength distribution and the electric mark ( AT ) outer sheath must be adopted.  At the same time, the amount of aramid fiber and the perfect stranding process were carefully designed to meet the application requirements of different spans.
